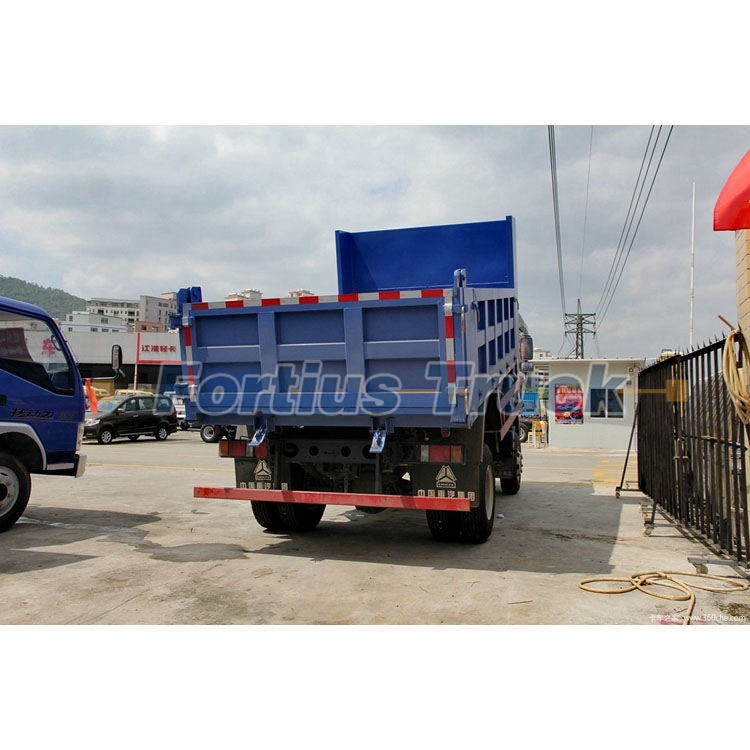

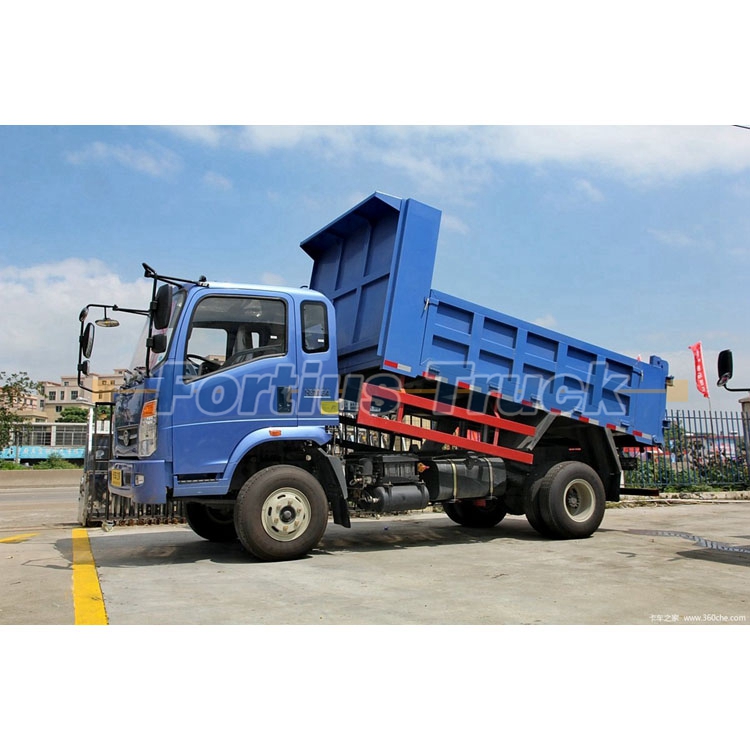

Sinotruk Homan 4x2 10-20Ton Dump truck

Sinotruk Homan 4x2 10-20Ton Dump truck

Sinotruk Homan H3 series 4x2 construction vehicles

Power coverage from 110 to 160PS

Wheelbase: 2800、3200、3350、3450、3500、3650、3800

Loading weight:10-20Ton


Hits:23
Product introduction

 Cabin

Driving type 4x2      LHD

standard cab, with two seats,attached photo for reference.

Vehicle Main

Dimensions

Overall dimensions (L x W x H)mm

6200X2500X2800

Wheel base  (mm)

2800、3200、3350、3450、3500、3650、3800

Weight

Tare weight (kg)

4500

Payload (kg)

7500

Axle

Front axle

4000

Rear axle

8000

Engine

Brand

YC

Model

YC4D130-33

YC4D160-33

Type

4-stroke direct injection ,  4-cylinder in-line turbo-charging and inter-cooling

Horse Power(HP)

130,160

Emission standard

Euro II

Gearbox

WLY145H, WLY653H,HW90510C,5 Forwards gear & 1 reverse gear

Tire

9.00R20,10.00R20 with one spare tire

Brakes

Service brake: dual circuit compressed air brake

Parking brake :(emergency brake): spring energy, compressed air operating on rear wheels

Auxiliary brake: engine exhaust brake

Body size

4000,4200*2200*(800+400) mm, bottom thickness 4mm, side wall thickness 3mm

Hydraulic

system

middle positioned
